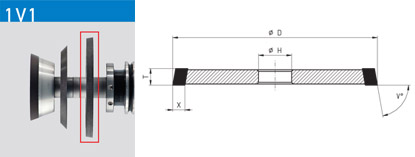

1V1 and 1A1 Diamond Wheels for Fluting
We ensure:
- Fluting time consuming operation is significantly reduced
- Extremely high stock removal
- Very low energy consumption
We enable:
- Perfect flute surface quality
Standard Dimensions*
| D | T/U | X | V | H | |||
|---|---|---|---|---|---|---|---|
| mm | inch | mm | inch | mm | inch | 30° - 80° | Per Request |
| 75 | 3 | 6-10 | 1/4 - 3/8 | 6-10 | 1/4 - 3/8 | ||
| 100 | 4 | 6-10 | 1/4 - 3/8 | 6-15 | 1/4 - 5/8 | ||
| 125 | 5 | 6-10 | 1/4 - 3/8 | 6-15 | 1/4 - 5/8 | ||
| 150 | 6 | 6-10 | 1/4 - 3/8 | 6-15 | 1/4 - 5/8 | ||
| D | T/U | X | H | |||
|---|---|---|---|---|---|---|
| mm | inch | mm | inch | mm | inch | Per Request |
| 75 | 3 | 6-10 | 1/4 - 3/8 | 6-10 | 1/4 - 3/8 | |
| 100 | 4 | 6-10 | 1/4 - 3/8 | 6-15 | 1/4 - 5/8 | |
| 125 | 5 | 6-10 | 1/4 - 3/8 | 6-15 | 1/4 - 5/8 | |
| 150 | 6 | 6-10 | 1/4 - 3/8 | 6-15 | 1/4 - 5/8 | |
(*) other dimensions are available on request.
